TD2310 30Amp MPPT Solar Regulator

SKU: 6487 Price: $199.00

Description:

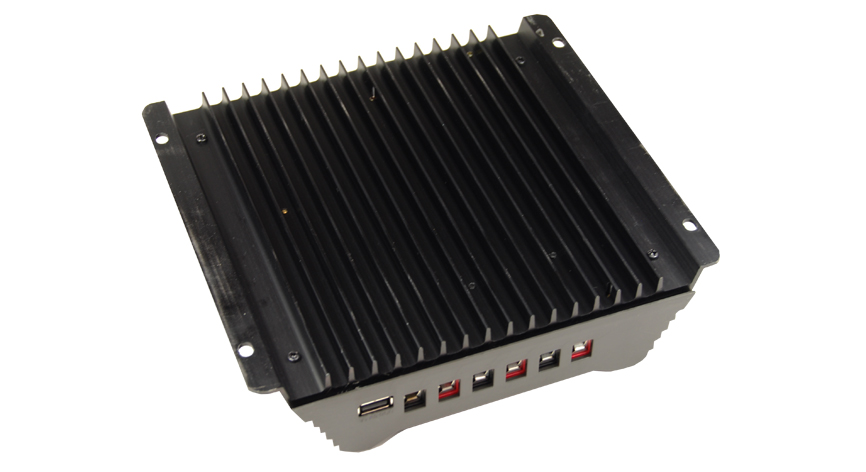

Heavy duty MPPT SolarKing Solar 30AMP solar regulator also known as solar charge controller. The unit has a large heat sink to dissipate heat and large wire terminal connections to accept large gauge cables. LCD display built in and the unit has a load timer built in for running lighting once daylight has run out for the day.

Solar regulators are used to connect your solar panels to batteries so the battery is charged at the correct power rates.

Features:

  • 30 Amp Maximum Current
  • MPPT
  • 12/24VDC Auto Select
  • USB Charging Socket
  • Adjustable Load Timer Output
  • Large Heat Sink
  • Charge Status Indicator
  • Under and Over Voltage Indicators
  • Load on/off Selectable
  • LCD Display
  • Large Terminals for large cables
  • Reverse Polarity Protection
  • 2 Hour Boost Charge when under voltage
  • Over Current Protection
  • Reverse Polarity Protection

Technical Specifications:

  • Dimensions
    200x183x54mm
  • Mounting holes
    190x130mm
  • Weight:
    1.2Kg
  • Terminal Size :
    16mm2
  • Enclosure Rating :
    IP32
  • Temperature Range:
    -20°C~+55°C
  • Voltage:
    12/24 Auto Selection
  • Voltage Range:
    11-30V
  • Input Power Range:
    390W (12V) 780W (24V)
  • Standby Current Drain:
    <15ma
  • Maximum Current:
    30AMP
  • Maximum Input Voltage:
    100V
  • Efficiency:
    99%
  • Overload Protection:
    30sec restart
  • USB Output:
    5V (1 Amp)

Packages:

  • 1x Solar Regulator
  • 1x Instructions
  • 1x Gift Box
