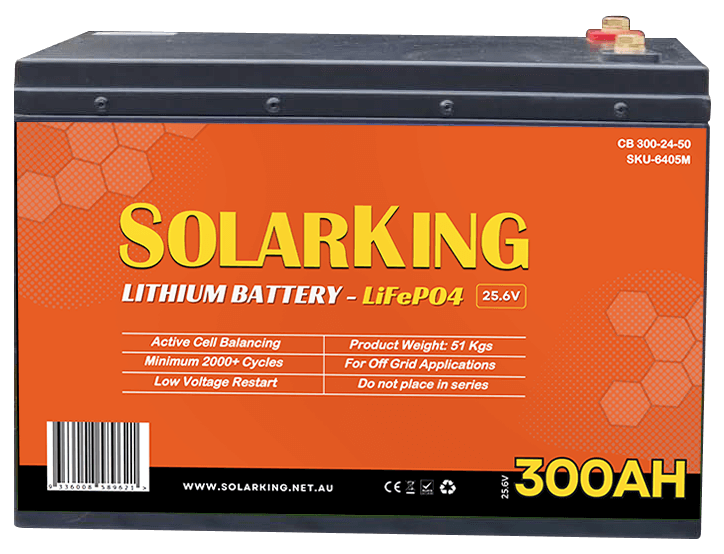

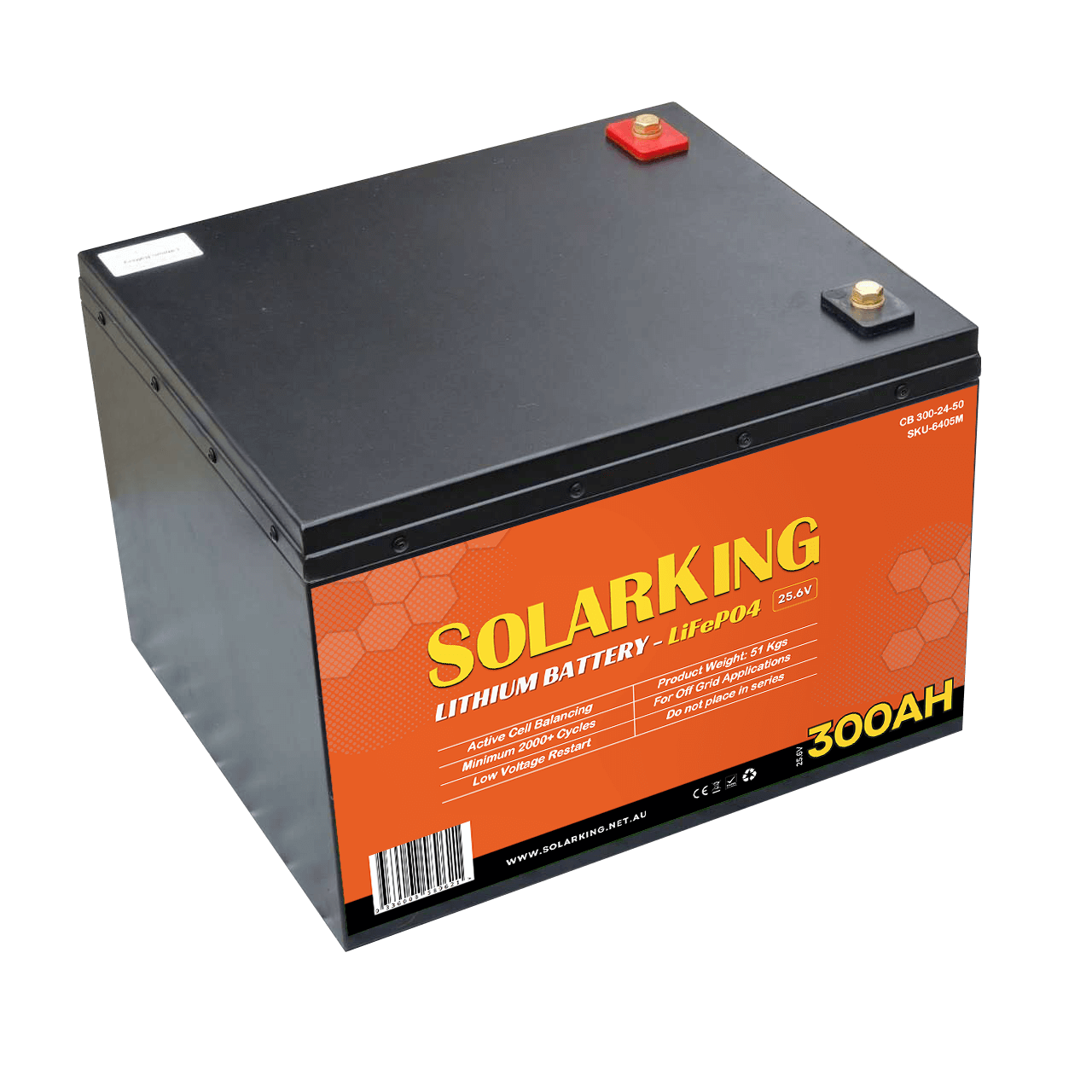

25.6V SolarKing Lithium Iron Metal Case CB-300-24-50

SKU: 6405M Price: 3249.00

Description:

SolarKing lithium batteries are the future of battery storage. Lithium batteries are much lighter than traditional lead acid batteries and deliver unrivalled cycle life, more than 4 times more cycles when compared to lead acid batteries. 24V Batteries are for use in off grid and high power RV systems. If you are replacing an existing deep cycle lead acid battery you can continue to use your same battery charging system as the built-in battery management system with do the rest for you. You will also notice that lithium batteries charge more efficiently than lead acid batteries so the recovery will be much quicker. This model SolarKing lithium battery use’s Active cell balancing technology to balance the internal battery cells not only whilst charging but also whilst discharging. This assist’s in getting the battery as close to 100% charge levels as possible. Solarking 24V batteries can be placed in parallel but can’t be placed in series.

Features:

  • 300AH Lithium Iron
  • 50A BMS
  • 25.6V (Called 24V)
  • Prismatic Cells
  • Minimum 2000+Cycles
  • Built in advanced BMS
  • Active cell balancing
  • Equivalent to a 600AH 12V Battery
  • Can be connected in parallel (Not Series)
  • CE, EMC, UN 38.3
  • Note: This battery can’t be used to start motor vehicles

Technical Specifications:

  • Specifications
  • Dimensions 365x315x245mm
  • Chemical: Lithium Iron Phosphate LiFePo4
  • Product Weight: 50kgs
  • Cell Type: Prismatic Cells
  • Operating Temperature Range: -20°C ~ +60°C
  • Voltage 25.6VDC
  • Amperage 300AH
  • Max Continuous Current 50A
  • Max 3 Second Pulse 120A
  • Min Charge Current <1A
  • Nominal Charge Current 30A
  • Max Charge Current 60A
  • Bulk Charge Voltage 28.4V
  • Float Charge Voltage 27.2V
  • Recommended Charge Rate: 30A
  • Cell Balancing: 5AH charge & discharge
  • Cycles @ 100% DOD 2000 Cycles
  • Cycles@ 80% DOD 3000 Cycles
  • Cycles@ 50% DOD 3500 Cycles
  • Cycles@ 30% DOD 8000 Cycles
  • Low Voltage cut out: 20.0VDC
  • Maximum charge voltage: 30.4V
  • Bulk Charge Setting: 29.2V
  • Float Charge Setting: 27.2V
  • BMS Reconnect: Automatic
  • Terminal T8
  • Certifications: CE, EMC, UN 38.3

Packages:

  • 1x CB-300-24-50 Lithium Battery
