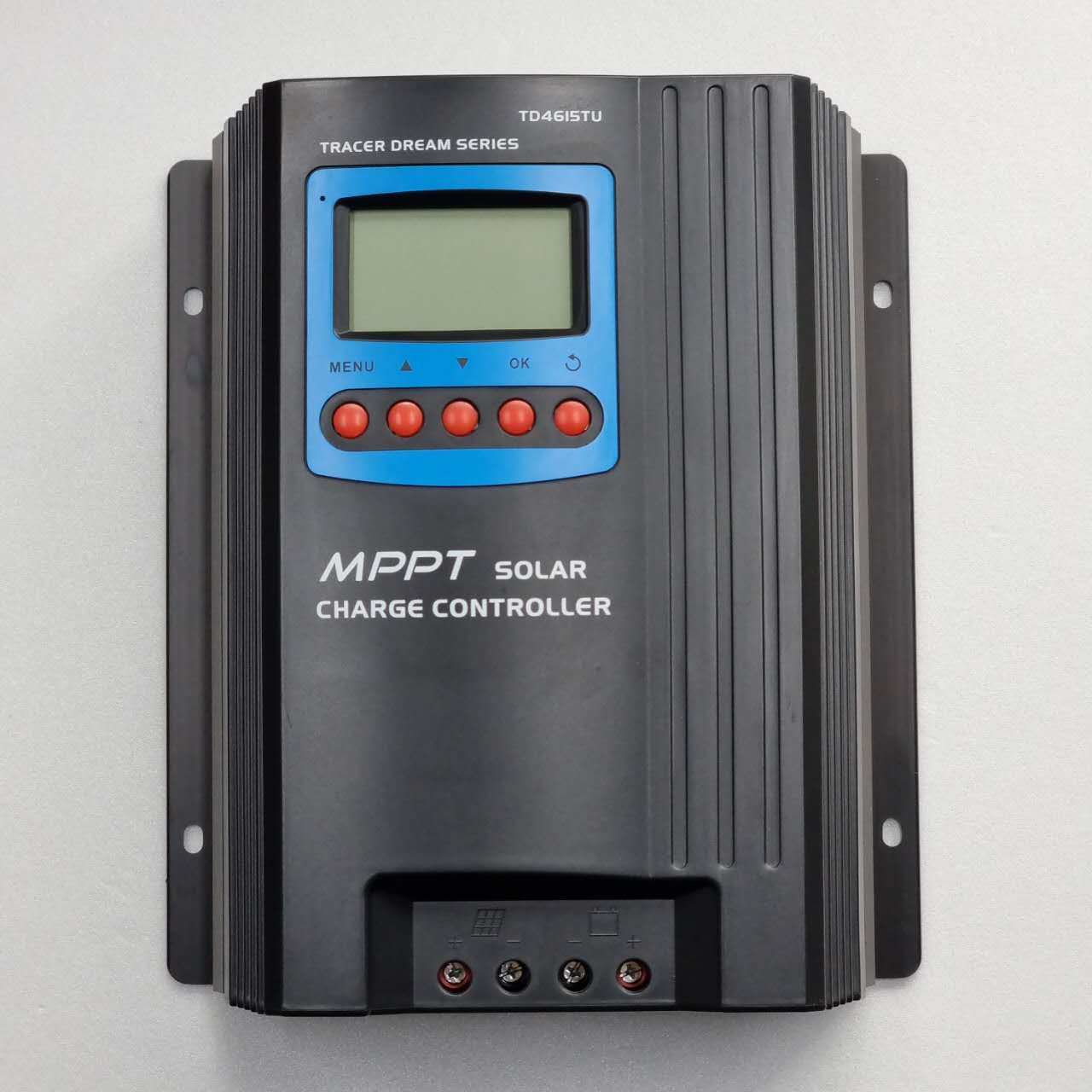

SolarKing TD4615 Solar Regulators
SKU: 6488 Price: 354.00
Description:
Heavy duty SolarKing Solar MPPT 60AMP solar regulator also known as solar charge controller. The unit is the beast! The unit has a large heat sink to dissipate heat. built in LCD display. Solar regulators are used to connect your solar panels to batteries so the battery is charged at the correct power rates. MPPT is the most efficient charging method for solar where the controller will modify the peak output power as voltage from the solar array changes. This unit has large terminal connections for thicker cables. The solar regulator suits both LiFePO4 and SLA/AGM Batteries.
Features:
- Suits Lithium LiFePO4 Profile
- 60 Amp Maximum Current
- MPPT
- 12/24/48VDC Auto Select
- Large Heat Sink (no fan)
- Charge Status Indicator
- Under and Over Voltage Indicators
- Load on/off Selectable
- LCD Display
- Reverse Polarity Protection
- 2 Hour Boost Charge when under voltage
- Over Current Protection
- External Temperature Probe
- Connection for On/off Switch
Technical Specifications:
- Specifications
- Dimensions 277x244x111mm
- Weight: 4.5kgs
- Max Charge Current: 60A
- Output Voltage: 12/24/48V (Auto Select)
- Weather Rating: IP32
- Operating Temperature Range: -20°C ~ +50°C
- Battery Types: LiFePO4, Lithium Ion, SLA, GEL, Flooded
- Grounding: Common Negative
- Low Voltage Disconnect: 11.0V Default (9V to 12V adjustable)
- Low Voltage Reconnect: 12.6V Default (11V to 13.5V adjustable)
- Float Voltage: 13.8V Default (13V to 15V adjustable)
- Boost Voltage: 14.4V Default (13V to 17V adjustable)
- Charge Type: MPPT
- Self-Consumption: <28mA
- Terminal Connection Size: 25mm2
- Maximum Solar Input Voltage: 138V
- Maximum Array power: 800W (12V) 1600W (24V) 3200W (48V)
Packages:
- 1x TD-4615TU Reg
- 1x instructions
- 1x Screw mounting pack 1x Plug for On/off cables

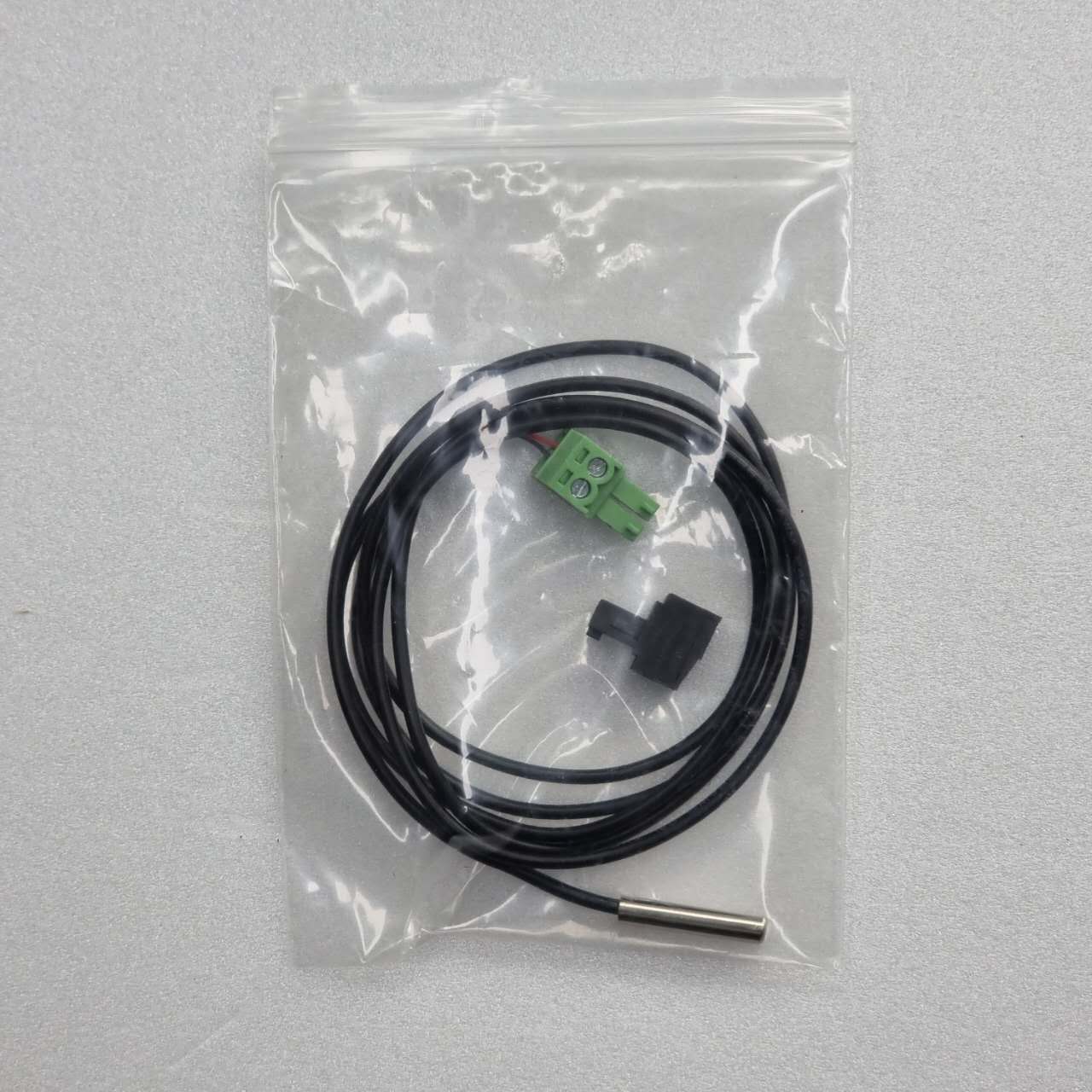

- Plug in temperature probe 1M
