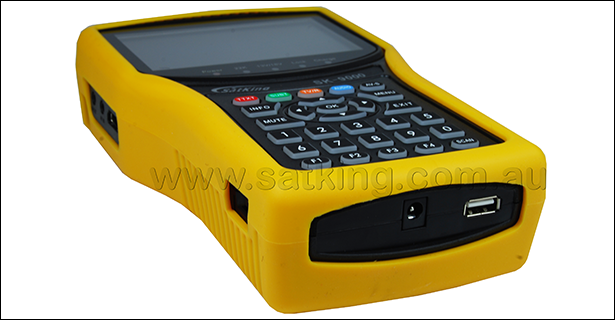

SatKing SK-9000B High Definition Combination Meter

SKU: 9627B

Description:

The SatKing SK-9000B is our latest High Definition combination meter for both terrestrial and satellite TV meter. The meter has all main technical readouts as well as MER, MER is required by the Australian government. This meter will display all digital channels and it will also display live colour picture and sound just like a compact TV. The unit is also perfect for CCTV alignment as it has AV input (cable supplied) and 12v power output to power your camera.

Features:

  • 4.3" colour LCD screen
  • Built in speaker
  • High Definition
  • MPEG2/4 Compliant
  • MER,BER,C/N,dB Microvolts
  • 3000mAH Lithium ION battery
  • HDMI output
  • AV Input for aligning security cameras
  • AV output
  • 12V Power output for power CCTV cameras (there is a limit to the current output)
  • Can be used as a compact TV if you add a TV Antenna
  • Antenna power for powering mast head Amps
  • Backlit menu buttons
  • Built in torch
  • Multimedia functions via the built in USB port

Technical Specifications:

System

  • CPU: Novatek
  • Processor Speed: 550 MHz
  • DDR: 512 MB

Tuner DVB-T

  • Frequency Range: 177.50-862.00 MHz
  • Signal Input Range: 30-110 dBuV
  • Impedance: 75 Ohm
  • Demodulation: QPSK, 16, 64, 128, 250 QAM
  • Modulation: COFDM
  • Bandwidth: 7,8 MHz
  • Subcarrier: 2, 4, 8k
  • Guard Interval: 1/4, 1/8, 1/16, 1/32

Tuner DVB-S

  • Frequency Range: 950-2150 MHz
  • Signal Input Range: -65~25 dbm
  • Impedance: 75 Ohm
  • Demodulation: QPSK, 8PSK
  • Symbol rate: 2-45,000

Video Decoder

  • Standard: MPEG-1, MPEG-2, MPEG-4 H.264, MPEG4 ASP@L5 HD (DVBS2)
  • System: Pal 25 Fames, NTSC 30 Frames
  • Format: 16:9, 4:3

Audio Decoder

  • Standard: MPEG-1 layer I/II, MPEG-2 Layer I/II
  • Output Mode: Stereo, L-Only, R-Only

Data Interface

  • USB: 2.0
  • File Management: NTFS, FAT32, FAT16, WMA, MP3, MP4, AVI, JPG, JPEG, BMP, IMG

Power

  • Battery: 8.4v 3000mAH Lithium Ion
  • Consumption: 10w Max
  • Meter Input: 12V 1.5amp (2.1mm DC Jack)
  • Charger Input: 100-240Volt AC 50-60Hz
  • CCTV Power Output: 12V 100mA (Selectable on/off)
  • Antenna Power Output: 5Volt (Max 200mA), 12Volt (Max 100mA), 17Volt (Max 200mA) Selectable

Physical

  • Dimensions: 210 x 125 x 48mm
  • Weight: 660 Grams

Connections

  • 1 x HDMI Output (V1.3)
  • 1 x 12V DC CCTV Output
  • 1 x 3.5 mm AV Input
  • 1 x 3.5 mm AV Output
  • 1 x USB 2.0
  • 1 x 2.1 mm 12V DC Input

Packages:

  • 1 x Meter
  • 1 x Carry case
  • 1 x Rubber case
  • 1 x 240v charger
  • 1 x 12 volt cigarette lighter cable
  • 1 x AV input cable
  • 1 x BNC adaptor
  • 1 x CCTV 12 Volt cable
  • 1 x Instruction disk
